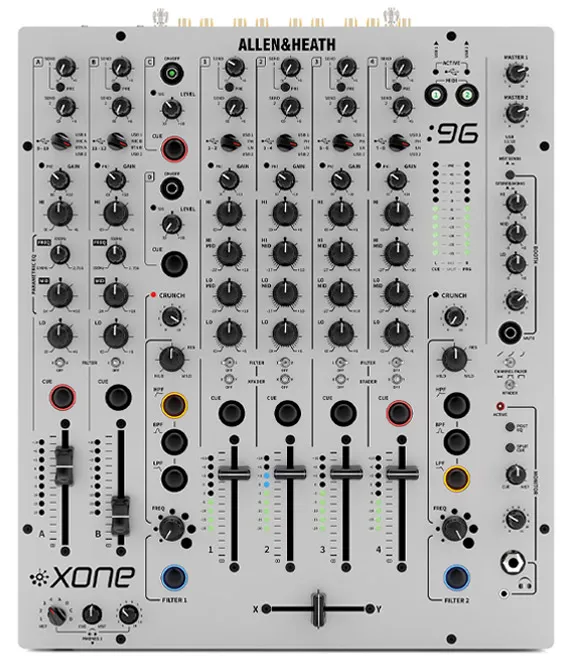

Allen & Heath Xone 96

The Allen & Heath Xone 96 is a premium analogue DJ mixer offering a fully analogue signal path across 4+2 channels, dual voltage-controlled filters (VCF) with resonance, dual stereo send/return loops, Crunch distortion, and a 32-bit USB audio interface. Renowned among deep house, techno, and vinyl DJs for its warm, musical sound character, the Xone 96 provides a distinctly different mixing experience from digital Pioneer mixers. We carry 2 units in our Croatian rental inventory, priced from EUR 140 per event day. Both units travel in flight cases rated for ferry transport to the Dalmatian islands, and they have been deployed at venues from Dubrovnik stone terraces to intimate Hvar beach clubs where analogue warmth transforms the atmosphere.

Ideal For

• Deep house and techno wedding after-parties where the analogue signal path and dual VCF filters create the warm, rich sound these genres demand
• Vinyl DJ sets paired with Technics 1200 MK7 turntables — the analogue Phono inputs preserve every detail of the record
• DJs who rely on external effects using the dual stereo send/return loops to route hardware reverbs, delays, and other processors inline
• Audiophile-focused events where the sound system is premium and the mixer must match — the Xone 96 pairs exceptionally with high-fidelity audio systems
• Creative performances where the Crunch distortion and resonant filters are integral to the DJ’s style

Not Ideal For

• DJs who expect Pioneer layout and workflow — if the performer’s rider specifies Pioneer, the Pioneer DJM-A9 or Pioneer DJM 900 Nexus II will feel immediately familiar
• Events requiring more than 6 input sources — while the 4+2 channel layout is generous, the Pioneer DJM-V10 offers true 6-channel operation for complex multi-source setups
• Simple playback-only events where an all-in-one controller like the Pioneer XDJ-RX3 keeps things compact and straightforward

Why Rent This

The Xone 96 is a deliberate choice. DJs who request it know exactly why — the analogue warmth, the resonant filters, and the send/return routing are part of their sound. For destination weddings in Croatia where the evening transitions into a proper underground set, the Xone 96 transforms a reception into something closer to a Berlin or London club night.

The dual stereo send/return loops are genuinely useful at Croatian outdoor venues. DJs can route external effects processors inline without any compromise to the main signal path. The 32-bit USB audio interface also means laptop-based DJs get clean, high-resolution output without needing a separate sound card.

Both units ship in flight cases and travel well on ferry crossings to Hvar, Brac, and the other Dalmatian islands. The Xone 96 runs on 230V/50Hz — native Croatian mains — so no voltage conversion is needed. For exposed coastal terraces where Bura wind and salt air are factors, we keep the flight case closed until the booth is sheltered and setup is ready to begin.

Technical Deep Dive

The Xone 96’s defining characteristic is its fully analogue signal path. Unlike digital mixers that convert audio to digital, process it mathematically, and convert it back, the Xone 96 keeps audio in the analogue domain from input to output. This means every signal passes through real analogue circuitry — transistors, capacitors, and resistors that impart a natural warmth and harmonic richness that digital processing cannot replicate. The result is a sound character that DJs describe as “warm,” “fat,” and “musical,” particularly in the low-frequency range where analogue circuits naturally add subtle harmonic content.

The dual voltage-controlled filters (VCF) are the Xone 96’s most celebrated feature. Each filter can operate as a high-pass, low-pass, or band-pass filter with adjustable resonance. When resonance is pushed higher, the filter begins to self-oscillate, producing a singing, sweeping tone that is a signature element of deep house and techno DJ sets. The two filters can be assigned to any combination of channels, allowing the DJ to apply different filter sweeps to different sources simultaneously — for example, filtering a vocal track while leaving the bassline untouched.

The analogue Phono inputs on the Xone 96 use a high-quality RIAA equalisation stage that is widely regarded as one of the finest in any DJ mixer. For vinyl DJs pairing the Xone 96 with Technics 1200 MK7 turntables, this means every detail pressed into the record groove is faithfully reproduced — crackle, warmth, and dynamic range intact.

The 32-bit USB audio interface bridges the analogue and digital worlds. Laptop DJs using Traktor, Ableton, or other software route their output through the USB interface at high resolution, and the signal then enters the analogue mixing path. This hybrid approach delivers the convenience of digital music libraries with the sonic character of analogue summing.

In Croatian outdoor environments, the analogue signal path is less susceptible to the interference issues that can affect digital equipment in electrically noisy environments. At older Croatian venues where power infrastructure may introduce minor electrical noise, the Xone 96’s analogue grounding and shielding provide clean, hum-free operation.

Feature-by-Feature Breakdown

Analogue signal path — The entire audio chain from input to master output remains in the analogue domain. This is the fundamental difference between the Xone 96 and digital mixers, providing a natural warmth and depth that is audible on quality audio systems.

Dual VCF filters — Two independent voltage-controlled filters with high-pass, low-pass, and band-pass modes plus adjustable resonance. These filters are expressive performance tools, not just mix aids — DJs use them to build tension, create sweeps, and shape the sonic texture of their sets in real time.

Crunch distortion — A built-in analogue distortion circuit that adds grit and harmonic saturation to the signal. It ranges from subtle warmth at low settings to aggressive overdrive when pushed, giving techno and industrial DJs a powerful tonal tool without needing external equipment.

Dual stereo FX send/return — Two independent stereo send/return loops for connecting external effects processors. Each loop has individual level controls and can be routed per channel. This allows two separate effects chains — such as a reverb and a delay — to operate simultaneously on different sources.

32-bit USB audio — A built-in USB audio interface that handles multi-channel audio at 32-bit resolution. Laptop DJs connect directly without an external sound card, and the USB interface supports multiple input and output channels for complex software routing.

Setup and Operation Guide

Setting up the Xone 96 takes approximately 10-15 minutes. Position the mixer on a stable, level surface and connect the IEC power cable to a 230V/50Hz outlet — standard at all Croatian venues. Power on and allow a brief warm-up period; analogue circuits benefit from reaching a stable operating temperature, which typically takes 2-3 minutes.

Connect turntables to the Phono inputs using RCA cables, ensuring the ground wire from each turntable is attached to the mixer’s grounding post to prevent hum. CDJs and media players connect to the Line inputs. For laptop DJs, connect via USB — the Xone 96 appears as a multi-channel audio interface in most DJ software including Traktor, Ableton, and rekordbox.

If using external effects, connect processors to the send/return loops using TRS or RCA cables (the Xone 96 supports both). Set the send level on the relevant channel, adjust the effects processor, and blend the wet signal back in using the return level control.

Common mistakes specific to the Xone 96 include forgetting to engage the filter assign buttons (each channel must be deliberately routed to Filter 1 or Filter 2), leaving the Crunch distortion active unintentionally, and overlooking the separate headphone source selection which differs from Pioneer mixer layouts. For outdoor Croatian events, the analogue circuitry is sensitive to moisture — always ensure the DJ booth area is covered and sheltered before removing the mixer from its flight case, particularly at exposed Adriatic venues where Bura wind may carry sea spray.

Venue and Event Planning Guide

The Allen & Heath Xone 96 is most frequently requested for late-night wedding after-parties and underground-style events at Croatian venues. It pairs naturally with intimate, atmospheric spaces — stone-walled cellars in Dubrovnik, candlelit terraces overlooking the Adriatic in Hvar, converted warehouse spaces in Split, and garden settings in Istria where the sonic character of the mixer becomes part of the evening’s identity.

For vinyl-focused events, the Xone 96 paired with two Technics 1200 MK7 turntables creates an authentic analogue setup that both sounds and looks distinctive. This configuration works well for guest counts between 30 and 200, where the audience is close enough to appreciate the sonic detail.

Position the DJ booth where the performer can hear the room and their monitors clearly. The Xone 96’s booth output drives DJ monitors directly, and its headphone amplifier is powerful enough for monitoring in loud environments. At Croatian outdoor venues, place the mixer where it is sheltered from direct sun and wind exposure.

Croatian noise ordinances apply to all events regardless of mixer choice. Coastal municipalities typically enforce limits from 23:00, and island venues may have earlier restrictions. The Xone 96’s master output VU meters provide accurate level indication for compliance monitoring.

How It Compares

The Xone 96 occupies a unique position in our mixer inventory as the only analogue option. At EUR 140 per day, it sits between the Pioneer DJM 900 Nexus II (EUR 120/day) and the Pioneer DJM-A9 (EUR 150/day) in price, but the comparison is not really about features — it is about sound character and DJ preference.

Pioneer mixers use digital signal processing that is clean, precise, and transparent. The Xone 96’s analogue path adds warmth, harmonic depth, and a slightly rounded low end that vinyl and deep house DJs actively seek out. DJs who request the Xone 96 do so because it fundamentally shapes their sound in a way that digital mixers cannot replicate.

Compared to the Pioneer DJM-V10 (EUR 170/day), the Xone 96 has fewer channels (4+2 versus 6) and fewer send/return loops (2 versus 4), but its dual VCF filters and analogue warmth provide sonic tools that the V10 does not offer. For events requiring both complexity and analogue character, some DJs request the Xone 96 alongside a secondary mixer for auxiliary sources.

What’s Included

• Allen & Heath Xone 96 mixer unit
• IEC power cable (230V compatible)
• USB cable
• Flight case

Commonly Rented With

• Technics 1200 MK7 — the natural turntable pairing for vinyl-focused sets
• Pioneer CDJ-3000 — for DJs who blend digital and analogue workflows
• Bose F1 Model 812 — flexible premium audio system that does justice to the Xone’s analogue output
• RCF SUB 8003-AS II — active subwoofer for full low-end extension on dance music events

Delivery & Setup

We deliver across mainland Croatia and the Dalmatian islands, with ferry transport fully managed. The Xone 96 is intuitive for DJs experienced with Allen & Heath gear, but its layout differs from Pioneer mixers. If your DJ has not used one before, we recommend confirming compatibility with their workflow or adding a technician for initial configuration and sound check.

Frequently Asked Questions

Why do some DJs specifically request the Allen & Heath Xone 96 over Pioneer mixers

The Xone 96’s fully analogue signal path produces a distinctly warmer, more harmonically rich sound than digital Pioneer mixers. DJs working in deep house, techno, disco, and vinyl-focused genres often prefer this sound character because it complements their music. The dual VCF filters are also unique to Allen & Heath mixers and are a core performance tool for many underground DJs.

Is the Xone 96 compatible with rekordbox and Serato DJ Pro

The Xone 96 functions as a USB audio interface for laptop DJs, but it does not natively unlock rekordbox or Serato DJ Pro the way Pioneer mixers do. DJs using these platforms will need their own software licence. The Xone 96 works natively with Traktor Pro and is compatible with any DJ software that supports standard ASIO or Core Audio interfaces.

Can Pioneer CDJ players be connected to the Xone 96

Yes. Pioneer CDJs connect to the Xone 96 via standard RCA cables into the Line inputs. However, the Pro DJ Link networking features (BPM sharing, waveform display on the mixer) are Pioneer-exclusive and do not function on the Xone 96. DJs connect the CDJs to each other via Ethernet for Pro DJ Link between the players, while audio routing goes through the Xone 96’s analogue inputs.

Does the analogue signal path make the Xone 96 sound noticeably different from digital mixers

Yes, particularly on quality audio systems. The analogue path adds subtle harmonic warmth, a fuller low end, and a slightly more natural transient response. The difference is most noticeable on vinyl playback and on premium audio systems where detail resolution is high. At a Croatian venue with a quality sound system, experienced listeners will notice the difference.

How does the Xone 96 handle power at Croatian venues

The Xone 96 operates natively on 230V/50Hz, matching Croatian mains standards. The included IEC power cable fits standard European Schuko outlets. No adapter or voltage converter is needed. The analogue circuitry is well-shielded against minor power fluctuations that may occur at older island venues.

Is the Xone 96 difficult to use for a DJ who normally plays on Pioneer equipment

The layout and workflow differ from Pioneer mixers. The EQ response curves are different, the filter system is unique to Allen & Heath, and the headphone cueing logic follows a different convention. An experienced professional DJ can adapt within a few minutes of familiarisation, but we recommend that DJs who have never used a Xone 96 spend time with it during the sound check before the event begins.
